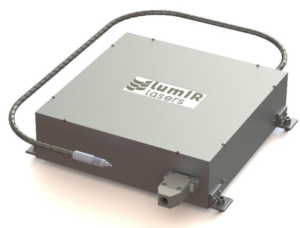

Mid IR fiber lasers

For medical applications and material processing

Since 2019, world-leading scientists at the COPL (Center for Optics, Photonics and Lasers) and Le Verre Fluoré joined their expertises to develop and commercialize reliable multiwatt continuous wave mid infrared lasers through a canadian join-venture LumIR Lasers Inc based on LVF fibers.

Features

  • Multiwatt continuous or quasi continuous lasers
  • Single mode operation
  • Narrow linewidth: < 1 nm
  • Robust, highly reliable, and maintenance-free
  • Compact form factor

2800 SERIES

Specifications
  • Wavelength range: 2.8-2.9 µm
  • Power: Up to 10 W average
  • Operation: Continuous (CW) or Quasi-Continuous
  • Output beam: Single-mode (M2 < 1.3)
  • Available as: OEM
Applications
  • Surgical and aesthetic laser systems
  • Dentistry
  • Organic material marking (fabrics, food, plastics)
  • Research and Development

3200 SERIES

Specifications

  • Wavelength range: 3.1 to 3.3 µm
  • Power: Up to 5 W average
  • Operation: Continuous (CW) or Quasi-Continuous
  • Output beam: Single-mode (M2 < 1.3)
  • Available as: OEM

Applications

  • Gas sensing
  • Defense and Security
  • Research and Development

Need information and help for mid infrared lasers :
